• Marketleader in no-man-entry robots
  • Game-changing cleaning method
  • ATEX zone 0 certified robots

Designed to fit in various pipes to do inspection

KOKS POIRO Robot

koks robotics inspection robots

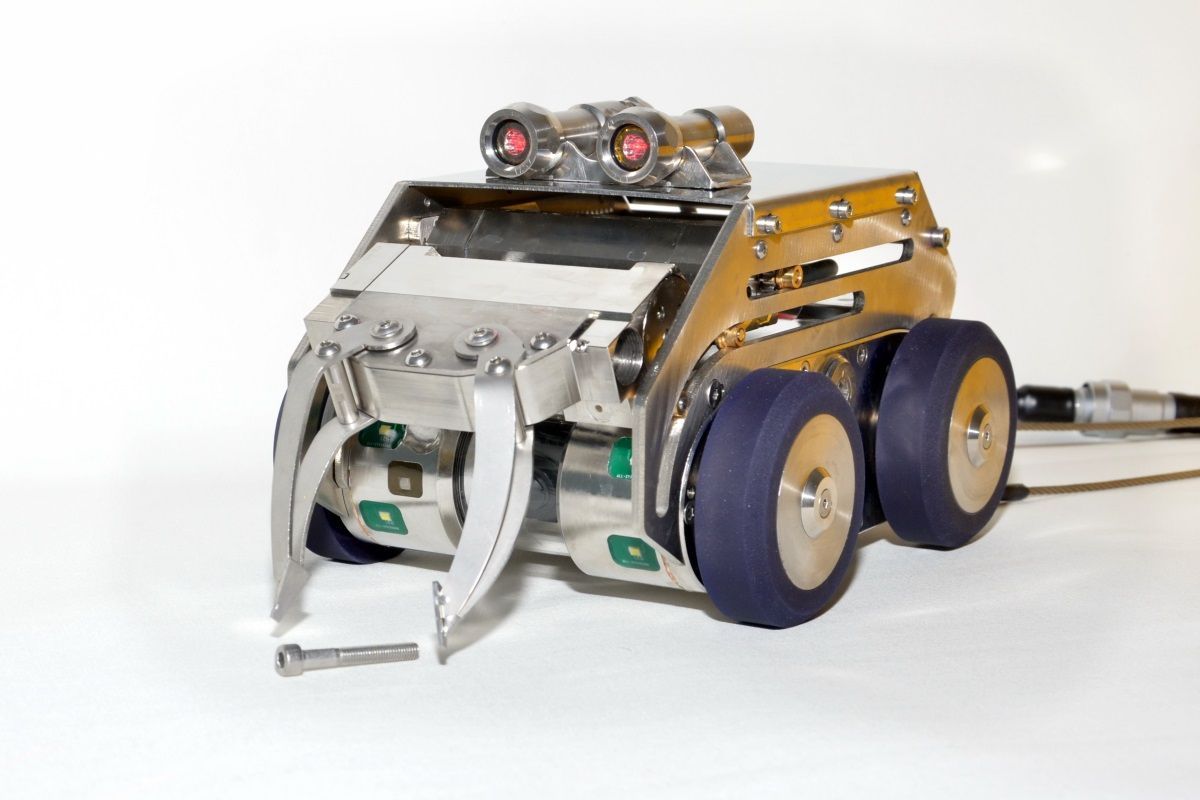

The KOKS POIRO inspection robots are designed to fit in various pipes for inspection jobs. The units are made to fit inside a pipe with a diameter starting from 200 mm. The inspection units are equipped with a grabber to remove minor obstacles in the pipes which might jeopardize the integrity of the system.

On behalf of larger pipes, the system can be adjusted with bigger wheels in order to ensure it’s centred in the pipe. The KOKS POIRO inspection robots are fully suitable for normal pipes and can even be upgraded with a gamma reader to make these fit for the nuclear industry as well.

The system can be equipped with a cable of max. 50 m, thus guaranteeing to cover the areas between the inspection hatches.

Technical specifications

  • Dimensions of body: 174 x 230 x 115 mm (width x length x height)
  • Weight: 7.4 kg
  • Control cable with cut resistance of up 100 kg with no need for additional tow cable

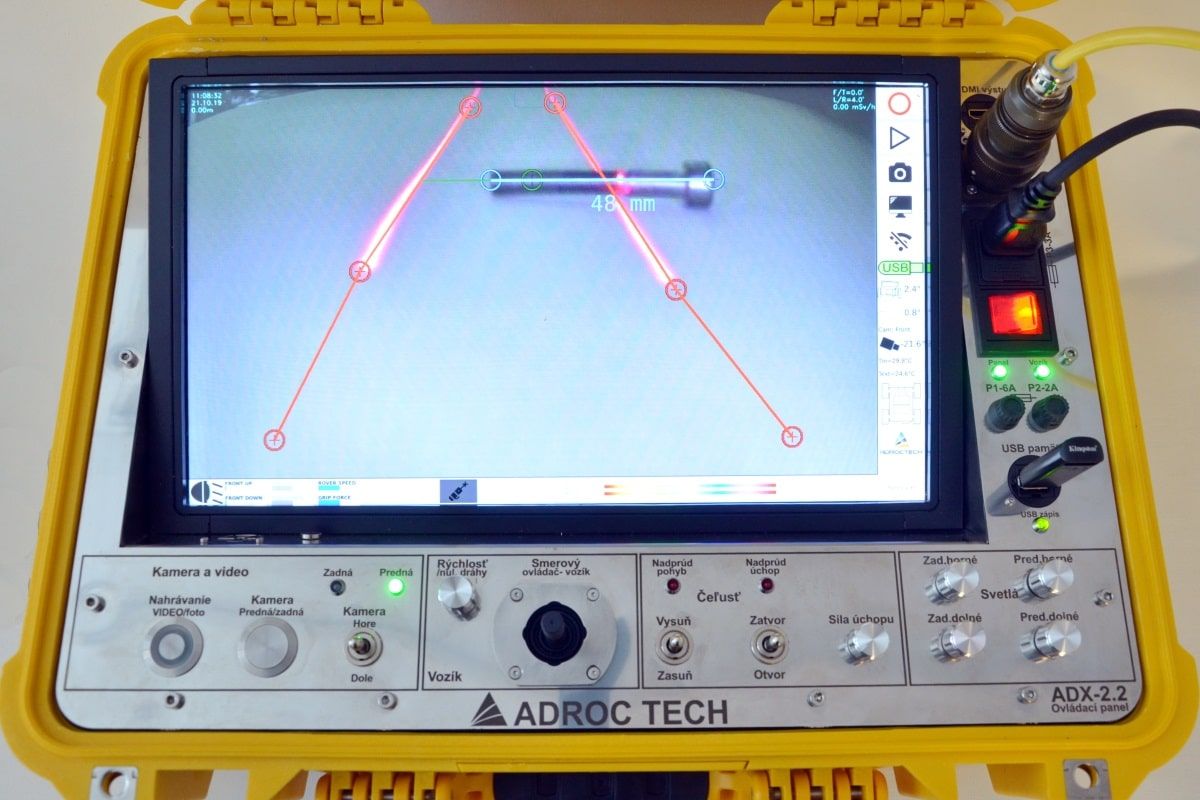

  • Self rotating color cameras with resolution of 550 lines and sensitivity from 0.05 lux
  • TV-cameras tested under gamma dose rate of 4.5 Gy/hour, at total gamma dose over 260 Gy
  • Adjustable lighting with continuous intensity range
  • Pull out/ back grip equipment for foreign object manipulation with weight of up to 200 g
  • Possibility of mounting optional superstructure onto the robot
  • Stainless steel & waterproof construction
  • Surface of the robot is easy to decontaminate
koks robotics inspection robot 7 min
koks robotics inspection robot 8

Technical specifications

  • Easily replaceable wheels + spare sets of wheels
  • Controllable speed of up to 3.5 m/min

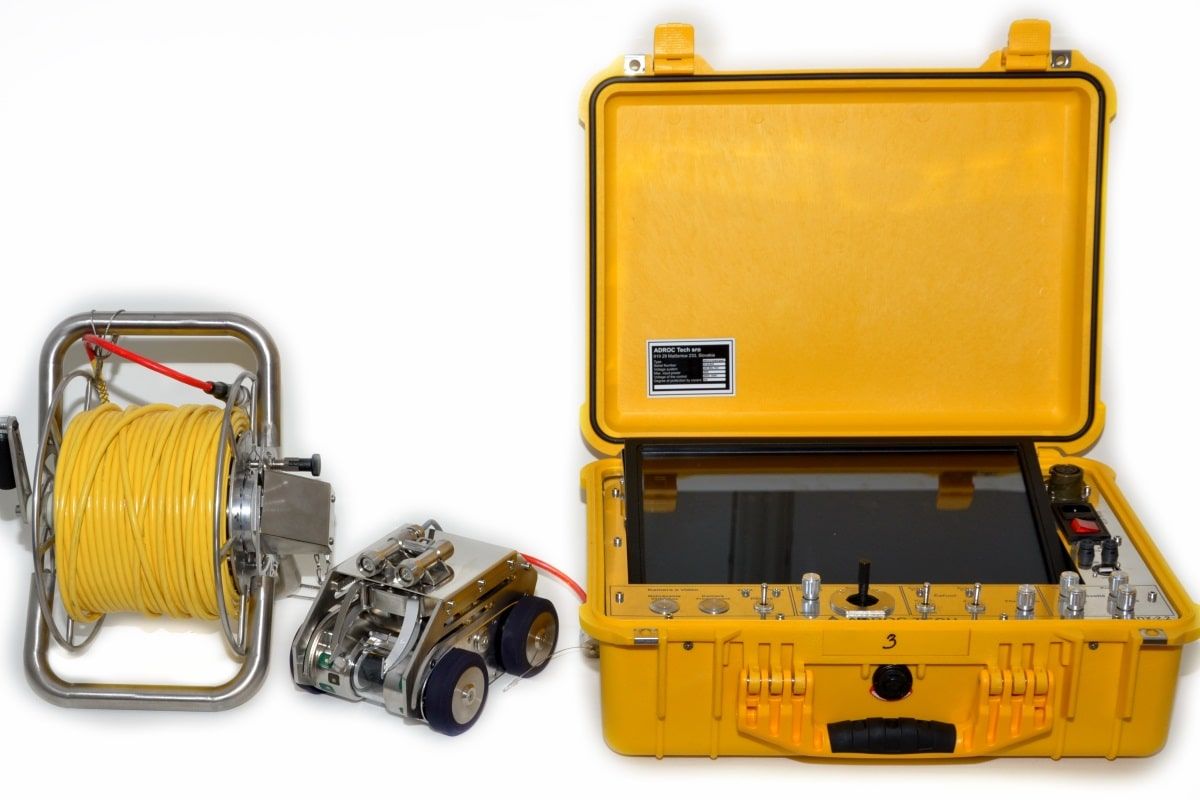

  • 50 m control cable on a cable reel
  • IP68 enclosure, waterproof up to 20 m depth
  • Tracking of travelled distance
  • Tilt sensor
  • Internal and external temperature measurement
  • Dose rate sensor integrated in the rover, scale 0.1-1000 mGy/h
  • Robot tightness signalization
  • 48 V DC power supply

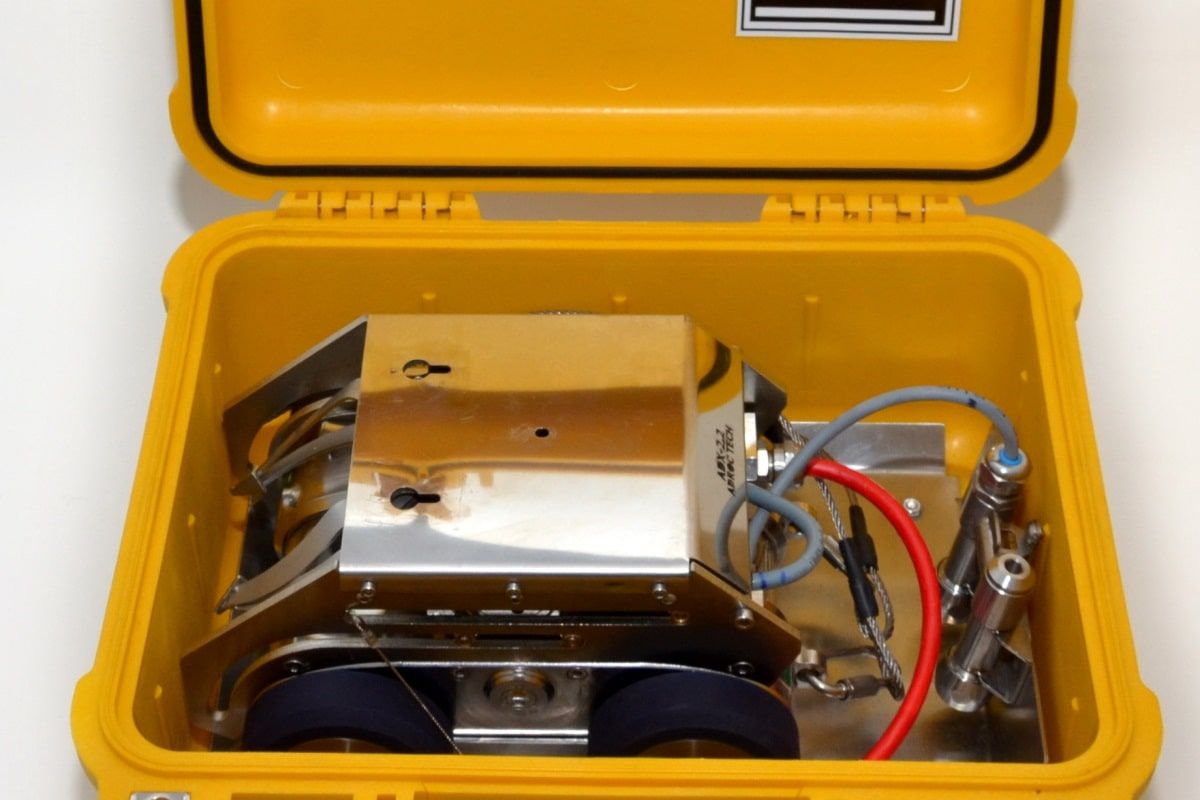

  • Stand-alone storage cases for contaminated robot and spare wheels
koks robotics inspection robot 1
koks robotics inspection robot 2 min
koks robotics inspection robot 3 min
koks robotics inspection robot 4 min

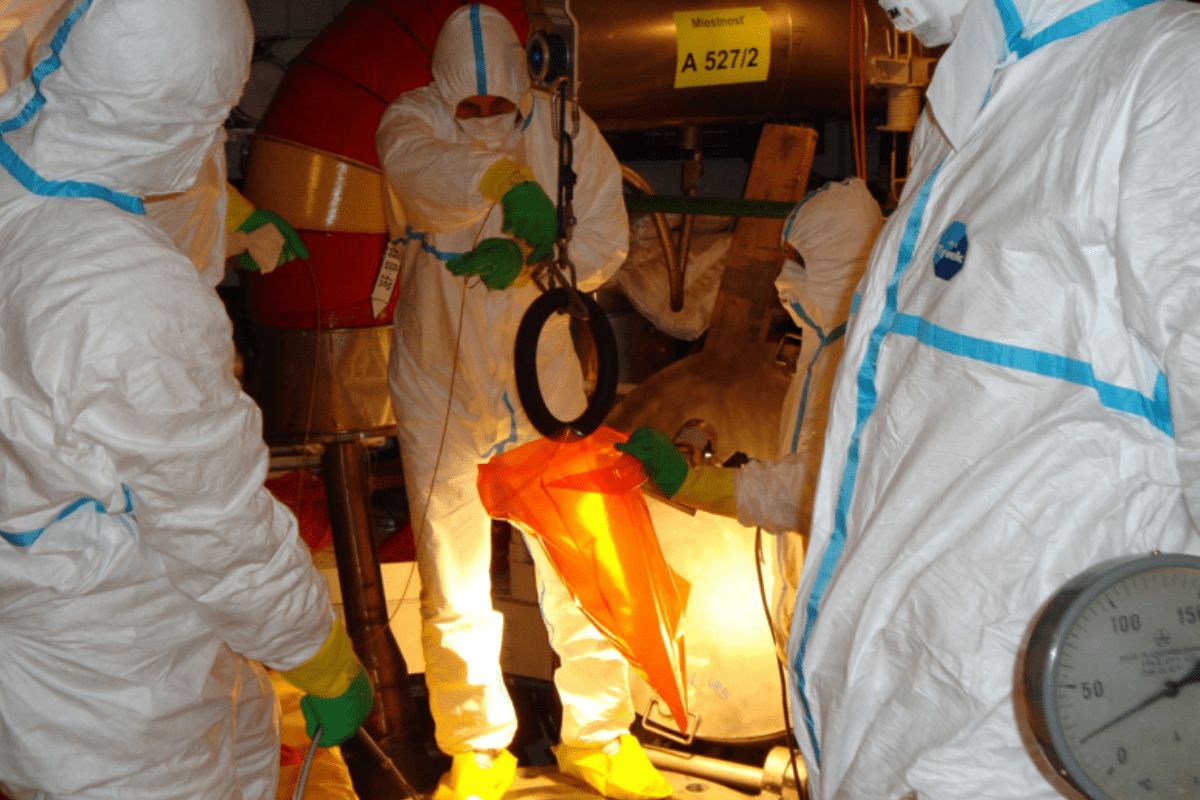

koks robotics inspection robot out of pipe radiation contamination min
koks robotics inspection robot 6 min

KOKS Robotics is market leader and manufacturer of innovative no-man-entry tank cleaning robotics for ATEX zone 0. KOKS Robotics is part of the Dutch company KOKS Group an international manufacturer and supplier of vacuum trucks and heavy industrial cleaning equipment, built in accordance with the latest PED, ADR (Ceoc), DOT 407/412 standards. Founded in 1989 and has since grown into a dynamic company that operates globally and consists of eight specialised subsidiaries in the USA, The Netherlands, the Czech Republic, Saudi Arabia, Slovakia and participations in rental organizations that operate in the Netherlands and the United Kingdom. As a growing, innovative and reliable company, KOKS Group has gained an excellent reputation in the (petro)chemical sector and other industries as a vacuum truck builder.

Contact us!

Would you like more information about our inspection robots? Feel free to get in touch with us! We are ready to help you, 24/7.
