Robotic system for underwater cleaning

KOKS SAPOD Robot

koks robotics products adx underwater robot system min

The KOKS SAPOD underwater robot system is designed for heavy and hazardous industrial applications and is suitable for underwater cleaning in order to eliminate the need for personnel to enter a submerged environment. The  KOKS SAPOD  underwater cleaning system is utilized in combination with a vacuum truck for discharging and transporting residue substances, at the bottom of tanks or basins. Therefore the unit is polished via electrochemical cleaning method to make it easy to wash off after the job is done.

Usage
The KOKS SAPOD underwater cleaning-system enables its user to clean bottom of tanks without a human entry. Commonly used for the cleaning of residues in water tanks, fire water tanks, cooling water tanks and other types of water basins.


Characteristics
All the materials which can touch the surface of the silo or tank are made of material which are suitable in tanks of drinking water environments. The polyurethane wheel rings and sealings enable the robot to move smoothly over the surface. During tank cleaning, the suction head follows the tank bottom surface - parallel to the tank bottom. To disrupt the bottom content the robot can be equipped with a brush.

Versions
The KOKS SAPOD underwater cleaning-system can be fitted with various option kits that are appropriate for your needs and/or for industrial applications.

Need thorough advice?

We can imagine that you would like to know more about our products, the fields of application and our company. Make an appointment without obligation to get to know us and our extensive range of industrial cleaning machines.
We will be more than willing to tell you why thousands of professionals worldwide trust KOKS Group and KOKS equipment.

You can contact us by calling +31 (0)72 540 66 99, by emailing info@koks.com or by filling in the contact form via the link below.

Robot

Type SAPOD robot
Material stainless steel type AlSl 304
Certification IP68 waterproof
Maximum range 70 meters
Control cable with cut resistance of 100 kg, can be used as tow cable.
Traction force 630 N
Speed 0-3.5 m/min
Wading depth 20 meters
Ambient temperature -10°C to 50°C
Wheels polyurethane
Surface electrochemical polished clean



koks robotics underwater cleaning robot system

Dimensions robot with brush

Length approx. 755 mm
Width approx. 480 mm
Height approx. 460 mm
Weight 75 kg



Dimensions robot with suction head

Length approx. 755 mm
Width approx. 480 mm
Height approx. 460 mm
Weight 60 kg



koks robotics adx underwater cleaning system robot camera

Cameras

Type 3 cameras of which 2 fixed and one self-rotating
color camera
Standards HD camera
Sensitivity 0,05 lux



Control Case (CC)

Dimensions (l x w x h) 500 x 400 x 200 mm
Weight approx. 16 kg
Monitors LCD monitors
Supply voltage / Rated current 230 V 50 Hz
Controls 2 joysticks
Joysticks joystick to control lights on the robot
  joystick to control cameras
Recording system included for 3 camera feeds and storage
Control system  industrial computer enabling semi-automated cleaning program



koks robotics adx underwater cleaning system robot. cc

Related products

koks robotics adx cyclovac pro vacuum truck dry wet air displacement

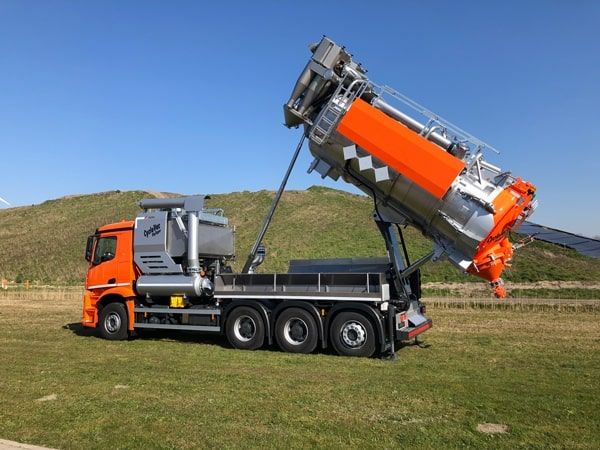

KOKS CycloVac Pro

Vacuum / air displacement truck

The KOKS CycloVac Pro is the perfect air displacement system for heavy duty suction, displacement and transportation activities in the construction and (petro) chemical industries and for all general industrial applications.

koks robotics adx vacuum truck dry wet koks cyclovac

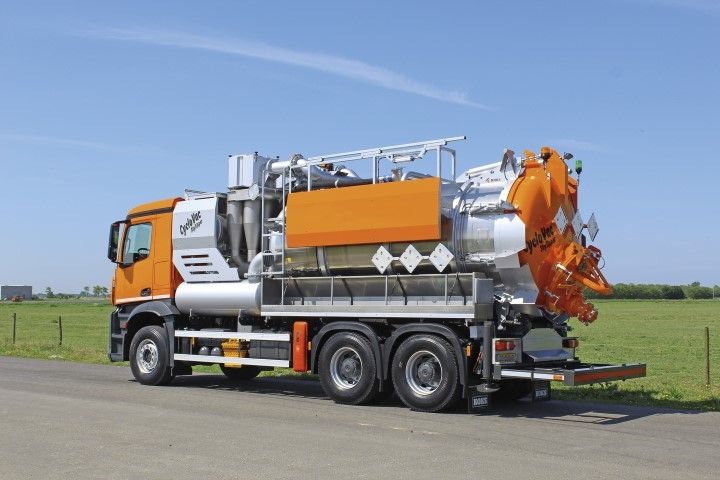

KOKS vacuum trucks
