We can build all our mobile control centers in various set ups. For example: the ESOT-system tank cleaning robot is normally build in an ATEX approved container, but why paying for something you don't need? Therefore we offer different set ups in small cabines, container or a van with a trailer. These choices are also applicable on our non-ATEX robotic solutions, for both SAKAL as ADX-TNR Robot.

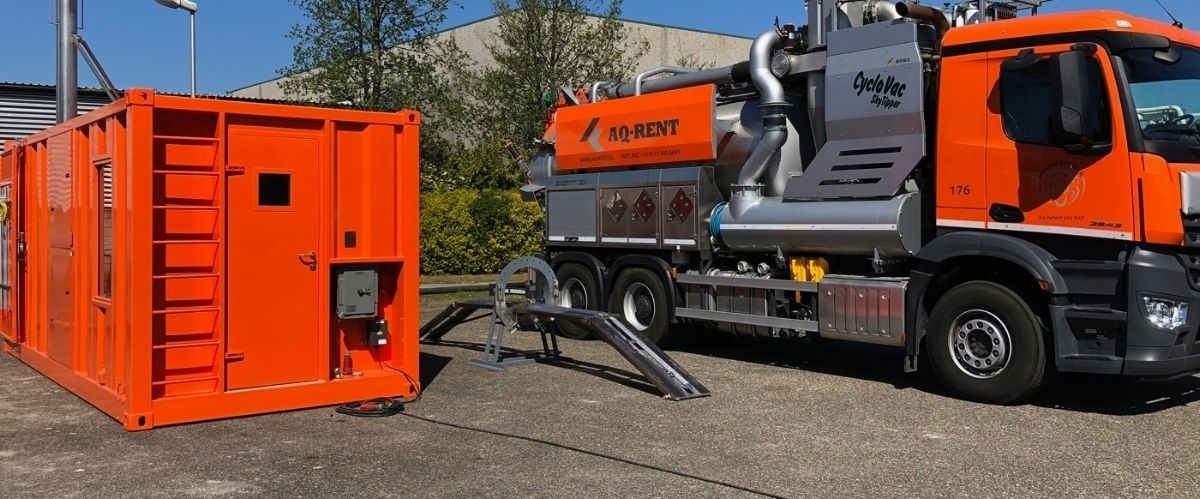

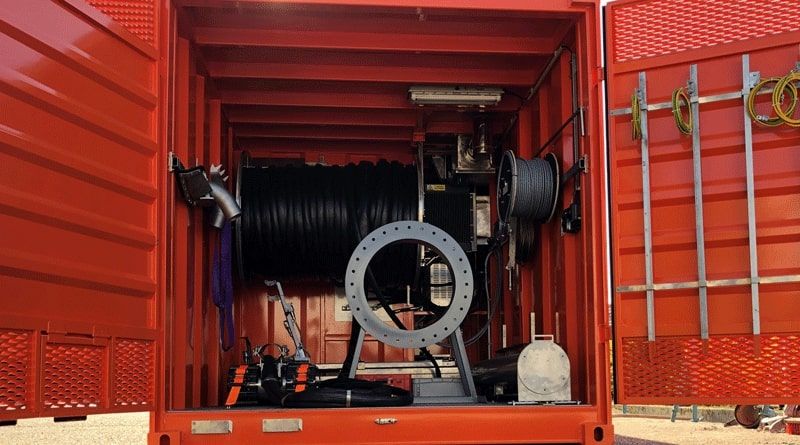

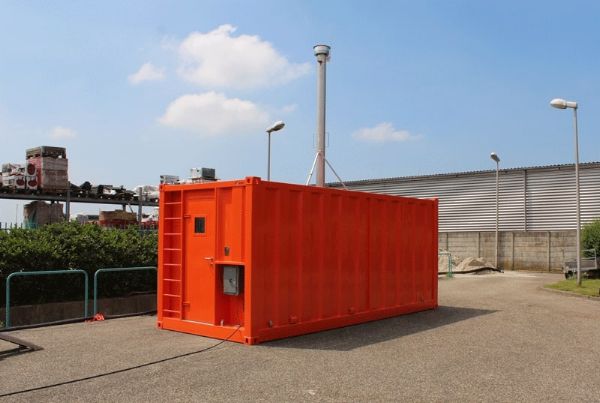

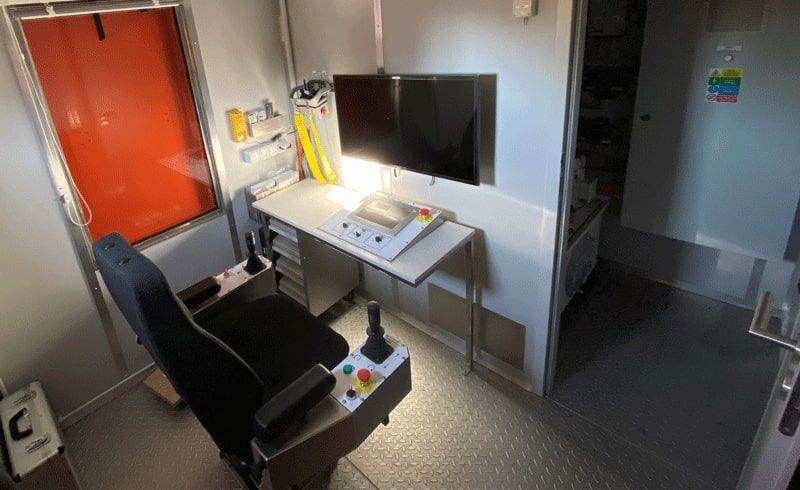

The KOKS ESOT-system tank cleaning robot will be delivered in a container set up. This provides the user with an 20 ft container which is devided in several compartments, a few of these are ventilated. There is also an option to certify the container for ATEX Zone 1 or 2 according to your whishes. The patented container will then be provided with an ATEX compartment and an non-ATEX compartment which allows the user to watch the camera feed of the tank cleaning robot on a full HD screen.

Approximate dimensions

Length: 3.800 mm

Width: 1.700 mm

Height: 2.000 mm

Total weight: 2.600 kgs

koks mobile control center tank cleaning robot container png

koks robotics robot system built up container animated 2

koks mobile control center tank cleaning robot container inside

koks mobile control center tank cleaning robot container inside 2

koks robotics robot system built up trailer option 2

An alternative option is to build the system on a double axle trailer, this way the system can easily be connected to a (vacuum) truck. Also, this system can be equipped with the tank cleaning robot, which is certified to either work in ATEX Zone 0 or submerged.

Approximate dimensions

Length: 3.800 mm

Width: 1.700 mm

Height: 2.000 mm

Total weight: 2.600 kgs

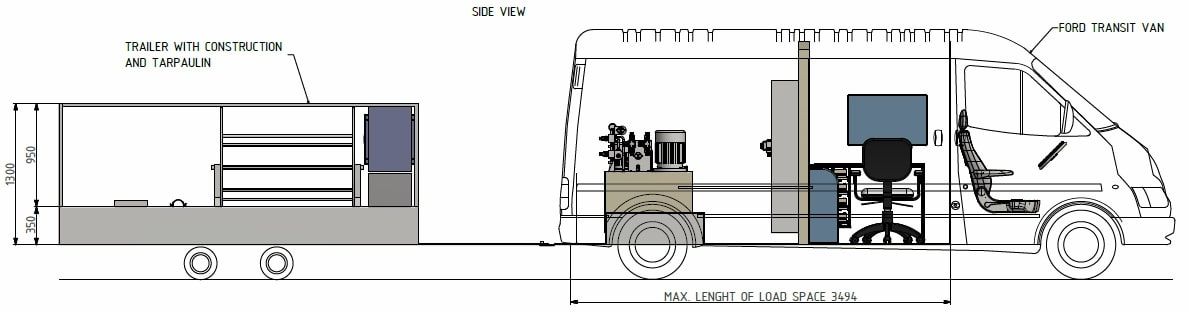

Furthermore, you can choose for the option of a van with a build-in control centre combined with a robotic system in a trailer, this will give you all the flexibility you need. The system allows the operator to sit comfortable in the van and operate the robot.

You can choose the type of van yourself, as long as there is sufficient space to build in the necessary components for the KOKS Robotics system.

Approximate dimensions of the load area - van:

Length of load space: 3.500 mm

Width of load space: 1.784 mm

Height of load space: 2.125 mm

Approximate dimensions of the load area - trailer:

Length of load space: 3.300 mm

Width of load space: 1.700 mm

koks robotics robot system built up small trailer 2 min

koks robotics robot system built up combination van small trailer

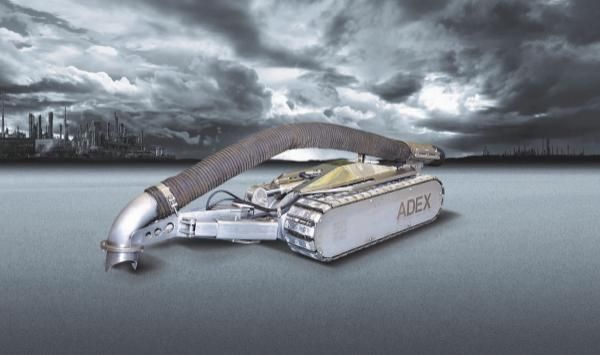

koks robotics esot system tank cleaning robot

Do you want to know more about our mobile control center set ups? Or are you curious what we can do for you? Our specialists are more than happy to help you. Don't hesitate to contact us! You can call us on +31 (0)72 540 66 99, send an e-mail to info@koks.com, or fill in our contact form!
